Seismographs Drum Bendandi Observatory of Faenza 44 17'18.3 "N 11 53'03.0" E

Vertical North-South 10 1050 grammi
Vertical East-West 99 1050 grammi
Storic Raffaele Bendandi Horizontal East-West 99 400 Kg

Seismographs Observatory Drum Novara (NO) 4525'07.4"N 836'48.5"E and Battaglia di Campli (TE) 4242'42.6"N 1338'11.9"E

Seismograph with Long-term self-built sensor - Novara Torrion Quartara
Seismograph with short period vertical sensor (1 Hz) Mark L4 - Battaglia di Campli (TE

earthquakes recorded by the Bendandi Observatory in 2018

Radio interference Bendandi Observatory of Faenza 44 17'18.3 "N 11 53'03.0" E

ELF 2<>1000 Hz
VLF 1<>22 Kz
Multistrep 24H ELF 2<>1000 Hz

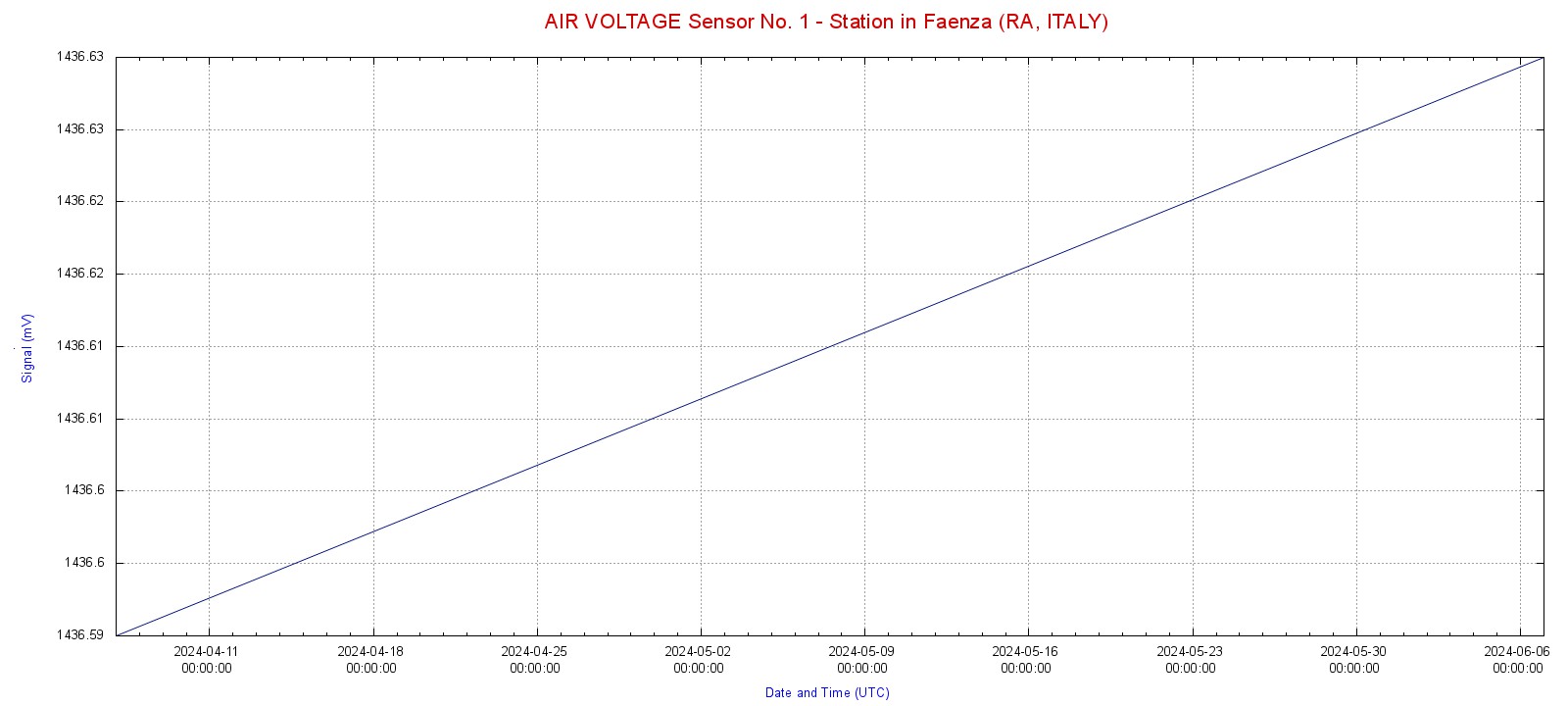

Voltage in air with TL081 and Gnuplot station of Faenza 44 17'10.9 "N 11 51'44.4" E

placed inside a wolf's mouth at 150 cm below ground level
placed inside a wolf's mouth at 150 cm below ground level

Electrostatic voltage on Capacitor 22000 MicroFarad and Gnuplot station of Faenza 44 17'10.9 "N 11 51'44.4" E

placed on the ground floor under a porch at 3 mt
placed on the ground floor under a porch at 3 mt

Magnetometer and Gnuplot station of Faenza 44 17'10.9 "N 11 51'44.4" E

placed inside a wolf's mouth at 150 cm below ground level
"Daily Data"placed inside a wolf's mouth at 150 cm below ground level

Radon

RADON IN THE AIR STATION MACERATA (CENTRAL ITALY) Lat 43,3 Long 13,45
RADON from Ponte delle Alpi Italy

Complete Radon graph in Battaglia di Campli (TE) Rn vs seismic events

RADON IN Battaglia di Campli (TE)

The graph shows some earthquakes recorded recently and the radon on the ground detected with hourly frequency from 29/10/17, the day on which our self-built instrument was installed at Battle of Campli, the line called 2sigma with a value of 10 is the average of Counts / h + 2 times the standard deviation, method commonly used to define an anomaly even if we consider it necessary to make acquisitions of at least one year to define this parameter well. The events were selected according to the report by Hauksson and Goddard, for further details see the list of events considered in the graph. We think the acquisition period is too short for a scientific analysis of these results, to clarify scientifically on Radon as a precursor we point out a publication by Dr. Anna Riggio of the National Institute of Oceanography and Experimental Geophysics (OGS) and a publication of the Observatory.

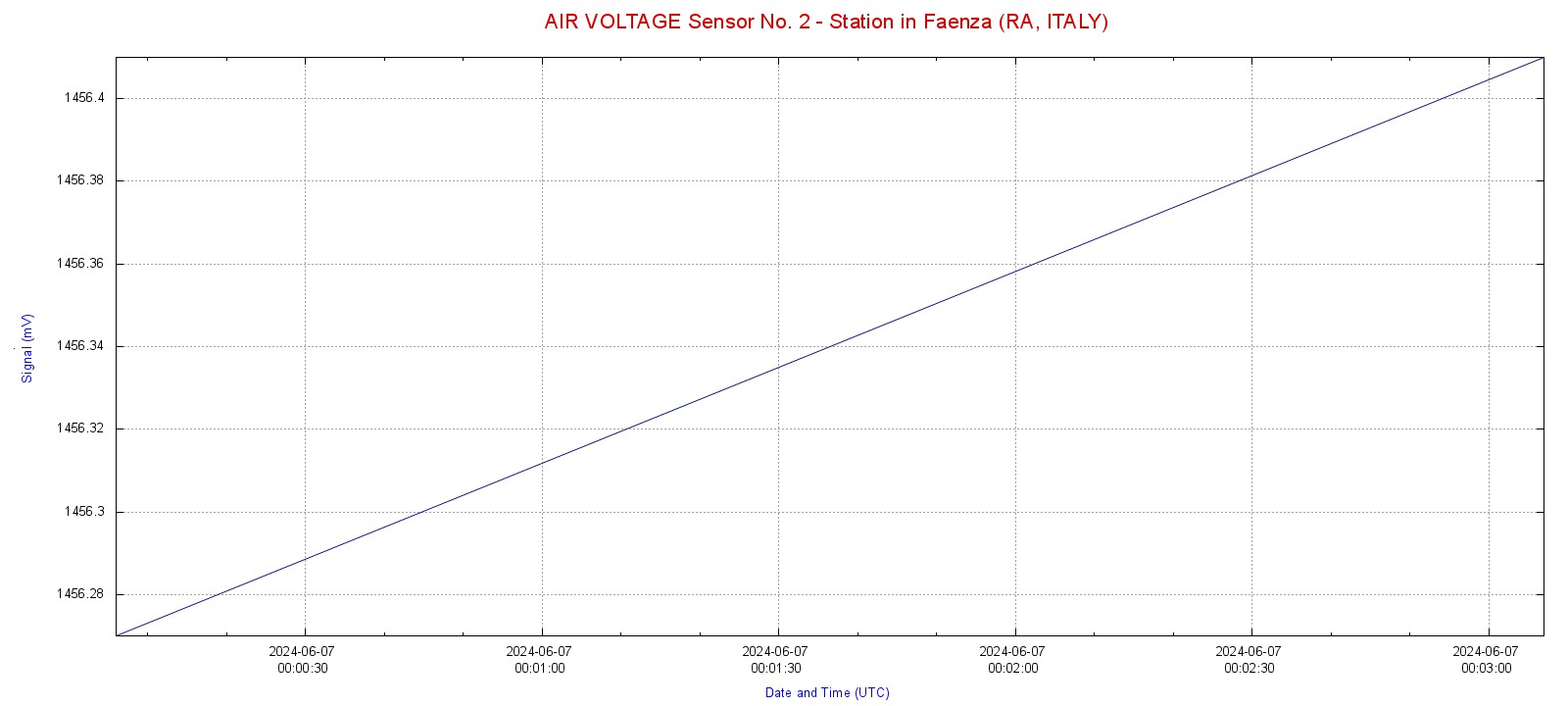

Vonair, Electrostatic-Capacitor 22000 MicroFarad, Magnetogram 3 axis and Blynk, manual update station of Faenza (RA) 44 17' 10.9"N 11 51' 44.4"E

Vonair 4 ground level outside the home
Placed on the ground floor under a porch at 3 mt
Magnetogram 3 axis on first floor window

Vonair, Electrostatic-Capacitor 22000 MicroFarad and Blynk, manual update station of Porto Recanati (MC) 43 24' 10.4"N 13 40' 38.2" E

Vonair on Capacitor 3 not reliable (180 Km from Faenza)
Capacitor 3 on terrace on the first floor (180 Km from Faenza)
Vonair 3 on terrace on the first floor (180 Km from Faenza)

Vonair, Electrostatic-Capacitor 22000 MicroFarad, Magnetogram 3 axis and Blynk manual update station of Brisighella (Ra)

Vonair placed in a wood (10 Km from Faenza)
Capacitor placed in a wood (10 Km from Faenza)
Magnetogram placed in a wood (10 Km from Faenza)
-->

Vonair, Capacitor Magnetogram 22000 MicroFarad, Magnetogram 3 axis and Blynk, manual update station of Parma (PR) 4449'36.5"N 1019'29.5"E

Vonair in the first floor terrace (135 Km from Faenza)
Capacitor in the first floor terrace (135 Km from Faenza)
Magnetogram in the first floor terrace (135 Km from Faenza)

Comparison between stations, of the voltage in air (Vonair) over a long period.

Faenza (RA)on a wolf's mouth at 150 cm below ground level
Porto Recanati (MC) on terrace on the first floor

Comparison between stations, of Electrostatic voltage on Capacitor 22000 MicroFarad over a long period.

Faenza (RA)placed on the ground floor under a porch at 3 mt
Porto Recanati (MC) on terrace on the first floor

Electron flux, Magnetometer, X-Ray-flux

Electron Flux
Magnetometer
X-Ray-Flux

Proton Flux, Estimated Kp index, latest 14 day

Proton Flux
Estimated Kp index
latest 14 day

Ionospheric and TEC Forecast

Ionospheric data
Ionospheric TEC Forecast

Legend
TEC in TECU Europa
VTEC evolution

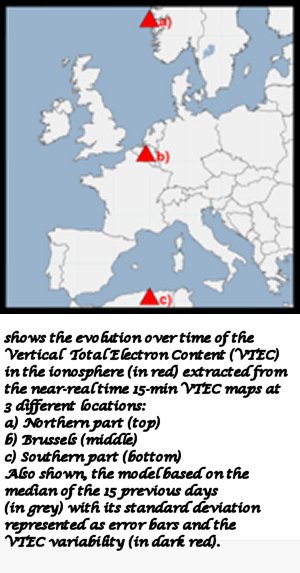

VTEC detection stations

Weather situation

Rainfall intensity
Animation fronts
Cloudy fronts
